Gauge valve - DIN16270

body number 0

DN: max. 4
PN max. 400
T max 120°C

(acc. to DIN)

Gauge valves according to DIN 16270 specification with vent screw, but without test connection.

parts list

part no. designation material
1 2 6
1 body, forged A105 316Ti brass
3 spindle roll sealed 430F 316Ti 430F
3.1 cone, rolled into, movable SS 316Ti SS
4 taper ring 1035 316Ti brass
6 packing graphite1) PTFE 2)
7 gland 1213 316Ti brass
8 union nut 1213 316Ti brass
9 handwheel moulded plastic 3)
10 nut steel galvanized SS brass
11 vent screw 430F 316Ti 430F
12 Form A adjusting nut 1213 303 brass
13 Form B nut (DIN 16284) A570Gr33,36 316Ti brass
14 nut (DIN 16284) 1213 303 brass
15 nut (DIN 3870) 1213 316Ti brass
16 cutting ring (DIN 3861) steel
DIN 3859
316Ti brass

1) On request: graphite-packing or
2) free of oil and grease: oxygen packing max. PN 250
3) On request: steel sheet or tommy bar.


Our gauge-valves are manufactured according to DIN regulations.

Your guarantee for workmanship at a high standard.

Order Number

M 0
inlet-code outlet-code
type body number material code special characters code
M=gauge valve   Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
6 Mst.: brass

    E venting
G bar (instead of handwheel)
H handwheel of steel sheet
K lock nut
PT german TA-Luft

order numbers for DIN gauge valves

designation material valve number acc. to DIN order number

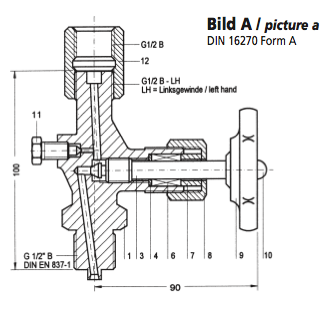

picture a
gauge valve DIN 16270 form A
A105 DIN16270-A-10St M01EGM12SP12
316Ti DIN16270-A-20St M02EGM12SP12

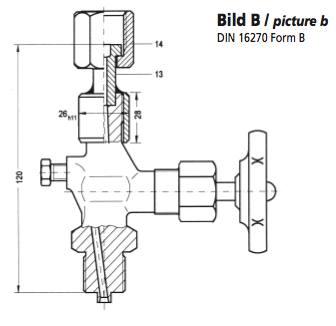

picture b
gauge valve DIN 16270 form B
A105 DIN16270-B-10St M01EGM12LG12
316Ti DIN16270-B-20St M02EGM12LG12

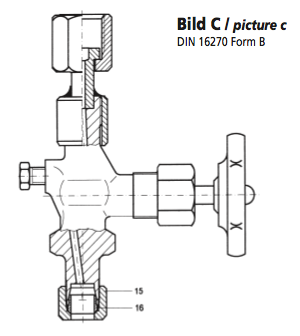

picture c
gauge valve DIN 16270 form B with inlet cutting ring
SV for 12 or 14 mm tubes ISO 8434-1 (DIN 2353)
SV 12 A105 DIN16270-B-10St-AS12 M01ESV12LG12
316Ti DIN16270-B-20St-AS12 M02ESV12LG12
SV 14 A105 DIN16270-B-10St-AS14 M01ESV14LG12
316Ti DIN16270-B-20St-AS14 M02ESV14LG12
similar picture c
gauge valve DIN 16270 form B with inlet welding
nipple ISO 8434-1 (DIN 2353)
SK 12 A105 DIN16270-B-10St-AS12 M01ESK12LG12
316Ti DIN16270-B-20St-AS12 M02ESK12LG12
SK 14 A105 DIN16270-B-10St-AS14 M01ESK14LG12
316Ti DIN16270-B-20St-AS14 M02ESK14LG12
