Proof-connections for gauge valves

application/pdf Download (760.3 kB)

Code = P1

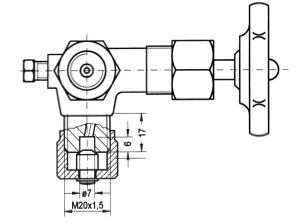

M20x1,5 male with cap DIN 16287 form C (for valve DIN 16271)

Code = P2

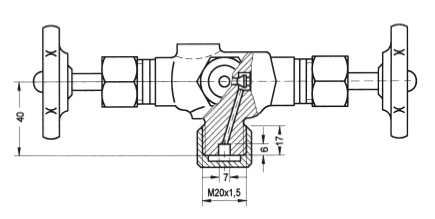

M20x1,5 male with protection-cap DIN 16287 form D (for valve DIN 16272)

Code = P3

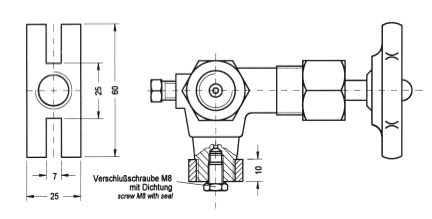

Proof-connection with flange 60mm x 25mm x 10mm (for valves DIN 16271 and 16272)

Code = P4

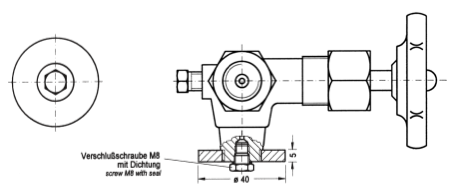

Round proofflange Ø 40 x 5mm (for valves DIN 16271 and 16272)
