Globe valves

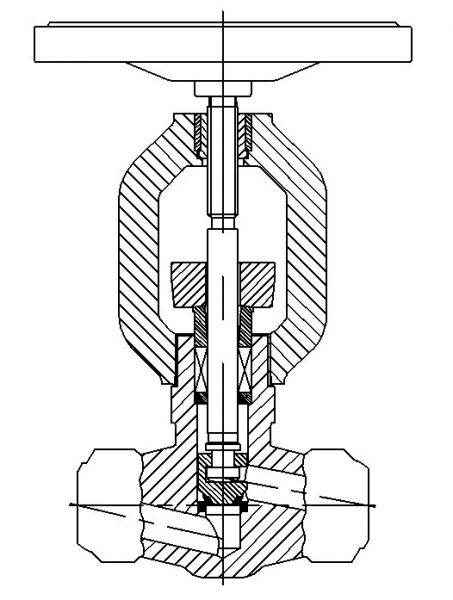

T-Pattern Globe valves

globevalvesT DN: max 50
ASME Class:1500/2500/4500
API Class: 6000PSI/10000PSI
DIN Class: PN160-PN640
 Forged steel, outside screw and yoke (OS&Y), Integral bonnet design, Eliminates the risk of leakage across body-to-bonnet connections. Provides a more rigid construction. Full or conventional port. Integral stellited disc and seat. Rotating rising stem, rising handwheel. Details

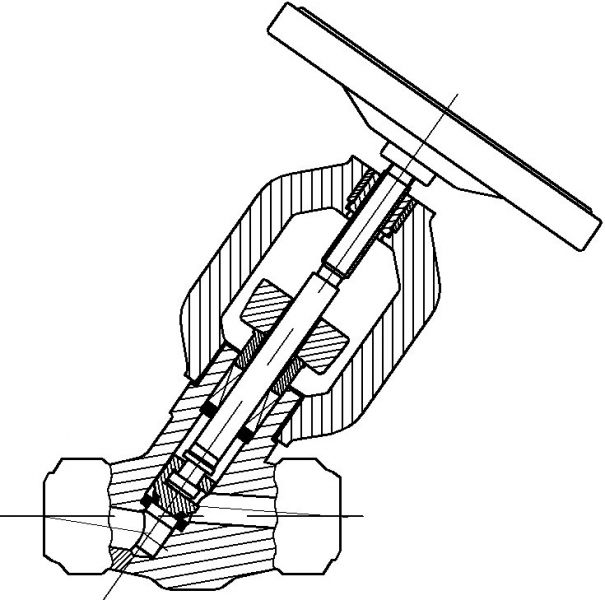

Y-Pattern Globe valves

GlobevalvesY  DN: max 50
ASME Class:1500/2500/4500
API Class: 6000PSI/10000PSI
DIN Class: PN160-PN640 		Forged steel, outside screw and yoke (OS&Y), Integral bonnet design,eliminates the risk of leakage across body-to-bonnet connections.
Provides a more rigid construction. Full or conventional port. Integral stellited disc and seat. Rotating rising stem, rising handwheel. 		Details
