Butt weld ends
SZ
|

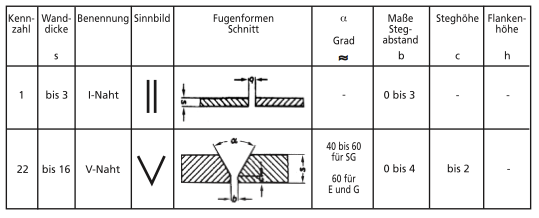

Butt weld ends Form of weld ends according to EN 12627 (DIN 2559) spec.; up to 2mm wall thickness butt weld joint (mark 1), or until 16mm wall thickness welding ends in V-form (mark 22), or to clients specification. |
 |
| D | S | L | Code | A3 | A7 | A11 | E5 | S15 in |
S15 out |
|---|---|---|---|---|---|---|---|---|---|
| 12 | 2 | 7 | SZ 12 |  |
|
|
|
|
|
| 13,5 | 2,6 | 7 | SZ 13 | |
|
|
|
|
|
| 14 | 2,5 | 7 | SZ 14 | |
|
|
|
|
|
| 17,2 | 2,6 | 10 | SZ 17 | |
|
|
|
|
|
| 20 | 2,6 | 10 | SZ 20 | |
|
|
|
|
|
| 21,3 | 2,6 | 10 | SZ 21 | |
|
|
|
|
|
| 21,3 | 3,2 | 10 | SZ 22 | |
|
|
|
|
|
| 21,3 | 6,3 | 10 | SZ 23 | |
|
|
|
|
|
| 24 | 7,1 | 10 | SZ 24 | |
|
|
|
||
| 26,9 | 5 | 10 | SZ 27 | |
|
|
|
||
| 33,3 | 5 | 10 | SZ 01 |
|
|
--> Other dimensions on request
EN 12627 (DIN 2559)
