Blind Flange DIN

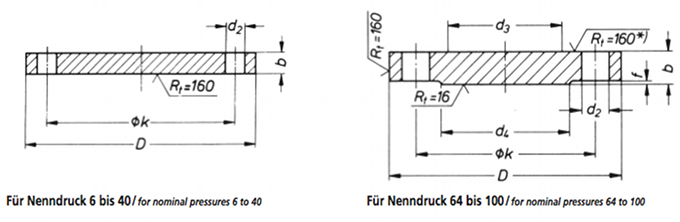

nominal pressures 6 to 100
Designation for a blind flange in form B2, DN100, PN 63, mat. P250GH (A105):
according to DIN EN 1092-1
Flansch EN 1092-1/05 B2/DN100 / PN63 / 1.0460
PN 16 (incl. PN 10)
|
Nennweite O.D. |
flange | drilling |
weight of flanges (7,85 kg/dm3) für Form A kg ≈ |
||||
|
|
|
|
|
|
|
||
|
10 |
90 |
14 |
60 |
4 |
M 12 |
14 |
0,63 |
|
15 |
95 |
14 |
65 |
4 |
M 12 |
14 |
0,72 |
|
20 |
105 |
16 |
75 |
4 |
M 12 |
14 |
1,01 |
|
25 |
115 |
16 |
85 |
4 |
M 12 |
14 |
1,23 |
|
32 |
140 |
16 |
100 |
4 |
M 16 |
18 |
1,80 |
|
40 |
150 |
16 |
110 |
4 |
M 16 |
18 |
2,09 |
|
50 |
165 |
18 |
125 |
4 |
M 16 |
18 |
2,88 |
PN 40 (incl. PN 25)
|
Nennweite O.D. |
flanges | drilling |
weight of flanges (7,85 kg/dm3) für Form A kg ≈ |
||||
|
|
|
|
|
|
|
||
|
10 |
90 |
16 |
60 |
4 |
M 12 |
14 |
0,72 |
|
15 |
95 |
16 |
65 |
4 |
M 12 |
14 |
0,81 |
|
20 |
105 |
18 |
75 |
4 |
M 12 |
14 |
1,24 |
|
25 |
115 |
18 |
85 |
4 |
M 12 |
14 |
1,38 |
|
32 |
140 |
18 |
100 |
4 |
M 16 |
18 |
2,03 |
|
40 |
150 |
18 |
110 |
4 |
M 16 |
18 |
2,35 |
|
50 |
165 |
20 |
125 |
4 |
M 16 |
18 |
3,20 |
PN 100 (incl. PN 63)
| Nennweite O.D. |
flanges | drilling | weight of flanges (7,85 kg/dm3) für kg |
|||||||
| D | d | k | d3 | d4 | f | number | thread | d2 | ||
| 10 | 100 | 20 | 70 | 32 | 40 | 2 |
4 |
M 12 | 14 | 1,00 |
| 15 | 105 | 20 | 75 | 34 | 45 | 14 | 1,22 | |||
| 25 | 140 | 24 | 100 | 52 | 68 | M 16 | 18 | 2,65 | ||
| 32 | 155 | 24 | 110 | 62 | 78 | M20 | 22 | 3,42 | ||
| 40 | 170 | 26 | 125 | 70 | 88 | 3 | 22 | 4,09 | ||
