Manifold 51
| 51 |
DN: max 5 (8) |
This 5 valve manifold is designed for remote mounting to a transmitter. It has two block valves (+ and - lines), 2 proof vaives and an equaliser valve. |
| s. also Barstockblock Körpernummer 51. |
parts list
| part no. | designation | material | ||
|---|---|---|---|---|
| 1 | 2 | 3 | ||
| 1 | body | A105 | 316Ti | A182-F11;F12 |
| 2 | seat interchangeable | 430F | 316Ti | |
| 3 | spindle roll sealed | 430F | 316Ti | |
| 3.1 | cone, rolled into, movable | SS | 316Ti | |
| 4 | screwed bonnet housing | 1035 | 316Ti | |
| 5 | scraper ring | Novapress | ||
| 6 | packing | graphite1) | PTFE2) | graphite1) |
| 7 | gland | 1213 | 316Ti | 316Ti |
| 8 | union nut | 1213 | 316Ti | 303 |
| 13 | seal | mild steel | 316Ti | mild steel |

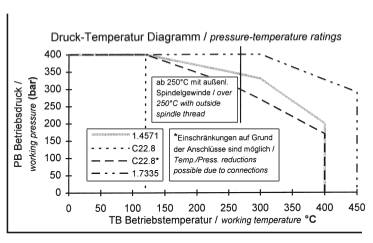

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250
 |

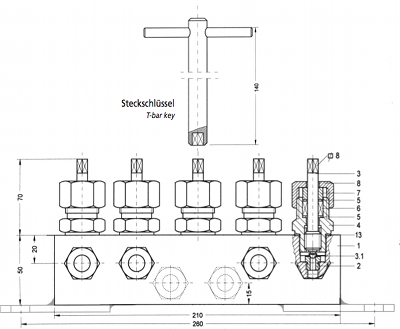

Diese Darstellung zeigt beispiels- weise den Ventilblock mit Ein- gangs-, Ausgangs- und Testan- schluß mit Innengewinde
1/2” NPT. Optional sind Laschen, Befesti- gungsgewinde und die Verschluß- schraube. (Andere Anschlüsse und Erklärun- gen s. Seite V25)

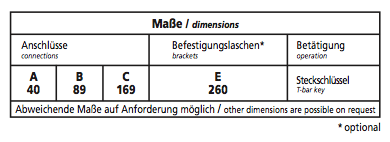

scale

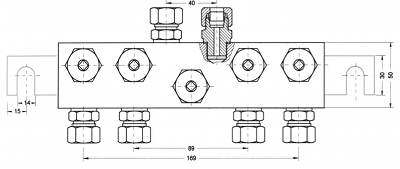

DThis picture shows e.g. the manifold with inlet, outlet and test connection cutting- ring for 12mm tube. Optional there are brackets.
Order no. for this example: V51?SVSVSV12L
|
|
|
 |
 |
 |
|
 |
Order Number
| V | 51 | |||||
| type | body number | material code | inlet-code | outlet-code | test-/ blow out connection code | special characters code |
| V=manifold | 1 Mat.: carbon steel A105 2 Mat.: stainless steel 316Ti 3 Mat.: heat resistant steel A182-F 11; F 12 |
P6 G3/8“ possibly with plug P7 G1/2-14 NPT possibly with plug P8 G1/4-18 NPT possibly with plug P1 screwed stud with M20x1,5 male. cap DIN 16287 form D Q5 G1/4“ with plug Q6 G3/8“ possibly with plug Q7 G1/2-14 NPT possibly with plug Q8 G1/4-18 NPT possibly with plug |
A external spindle thread F bellow L bracket PT german TA-Luft |
