Condensate chambers

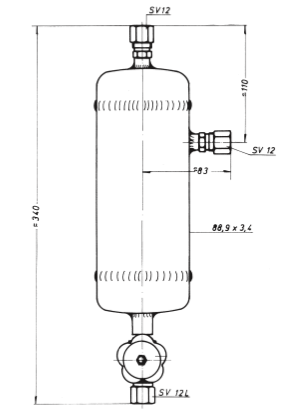

| The connections and an outlet-valve, if also required will be manufactured to your specifications. | We manufacture different types of condensate chambers. |
|
|
 |

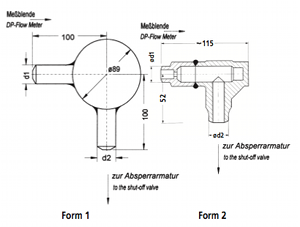

| form | PN | material *1) | contens cm³ |
inlet d1 | outlet d2 | DIN-no. | order number |
| 1 | 100 | steel | ~250 | G 1/2" DIN 19207 Form R | G 1/2" DIN 19207 Form V | DIN19211-2A | AB110030GA12GA12 |
| SS | AB210030GA12GA12 | ||||||
| A182-F11;F12 | AB310030GA12GA12 | ||||||
| 1 | 100 | steel | ~250 | Schweiß-stutzen 21,3x3,2 | G 1/2" DIN 19207 Form V | DIN19211-2B | AB110030SZ22GA12 |
| SS | AB210030SZ22GA12 | ||||||
| A182-F11;F12 | AB310030SZ22GA12 | ||||||
| 1 | 100 | steel | ~250 | Schweiß-stutzen 21,3x3,2 | Schweiß-stutzen 21,3x3,2 | DIN19211-2C | AB110030SZ22SZ22 |
| SS | AB210030SZ22SZ22 | ||||||
| A182-F11;F12 | AB310030SZ22SZ22 | ||||||
| 1 | 100 | steel | ~250 | Schweiß-stutzen 24x7,1 | Schweiß-stutzen 24x7,1 | ähnl. DIN19211-4C | AB110030SZ24SZ24 |
| SS | AB210030SZ24SZ24 | ||||||
| A182-F11;F12 | AB310030SZ24SZ24 | ||||||
| 2 | 400 | 1020 | ~20 | Schweiß-stutzen 21,3x3,2 | Schweiß-stutzen 21,3x3,2 | DIN19211-8C | AB1400-2SZ22SZ22 |
| 316Ti | AB2400-2SZ22SZ22 | ||||||
| A182-F11;F12 | AB3400-2SZ22SZ22 | ||||||
| 2 | 400 | 1020 | ~20 | Schweiß-stutzen 24x7,1 | Schweiß-stutzen 24x7,1 | DIN19211-9C | AB1400-2SZ24SZ24 |
| 316Ti | AB2400-2SZ24SZ24 | ||||||
| A182-F1 | AB3400-2SZ24SZ24 | ||||||
| A182-F11;F12 | AB7400-2SZ24SZ24 |
*1) materials
| condensate chambers | ||
| form | chambers | connection thread end - or - weld end |
| 1 | P265GH (Nr. 1.0425) to DIN 17155 |
P235GH (1.0345) to DIN 17175 |
| 1 | 13 CrMo 44 (Nr. 1.7335) to DIN 17155 |
13 CrMo 44 (Nr. 1.7335) to DIN 17175 bzw. DIN 17243 |
| 1 | 1.4571 to DIN 17440 |
1.4571 to DIN 17440 |
All materials can be delivered with certificate DIN EN 10204 - 3.1 (3.2)
