Accessories for gauge valves

Download (2.7 MB)

Nipple connection DIN 16284 for pressure gauges and their accessories

Nipple connection DIN 16284 for pressure gauges and their accessories – Technical illustration: nippelv1

material		DIN-no.	order number
nipple (weldable)	nut	DIN-no.	order number
steel	steel	DIN16284- G1/2-10St-10St	16284 NI1 12 MU1 G12
SS	SS	DIN16284- G1/2-20St-20St	16284 NI2 12 MU2 G12
warmresitant steel	steel	DIN16284- G1/2-15St-15St	16284 NI5 12 MU1 G12
warmresitant steel	SS	DIN16284- G1/2-15St-20St	16284 NI5 12 MU2 G12
brass	brass	DIN16284- G1/2-10Ms-10Ms	16284 NI6 12 MU6 G12

other dimensions on request

Shock proofer for gauges

Shock proofer for gauges – Technical illustration: stossm1

connection	max. temperature 200°C	PN	*material ^1)**	order number
G1/2“ m with spigot x G1/2“ f		250	steel	STM1GM12GI12m
G1/2“ m with spigot x G1/2“ f		250	SS316Ti	STM2GM12GI12m

other dimensions on request

Cap DIN 16287

Cap DIN 16287 – Technical illustration: verschlussk

connection	*material ^1)**	order number
M20 x 1,5 thread	brass	16287MSM20
	steel	16287STM20
	SS316Ti	16287VAM20

other dimensions on request

Gauge seals DIN EN 837-1 (DIN 16258 form C)

Gauge seals DIN EN 837-1 (DIN 16258 form C) – Technical illustration: manometerd

connection	material	order number
for G1/2“ (M20 x 1,5 thread) D = 17,5; d = 6,2; b = 2	copper	16258KuG12
	PTFE	16258PTG12
	aluminium	16258ALG12
	BA-CF 500 (free of asbestos)	16258BAG12
	mild steel	16258STG12
	SS316Ti	16258VAG12
	SS316Ti profiled	16258VPG12
for G1/4“ (M12 x 1,5 thread) D = 9,5; d = 5,2; b = 1,5	copper	16258KuG14
	PTFE	16258PTG14
	SS316Ti profiled	16258VPG14

other dimensions on request

adjusting nut DIN 16283

adjusting nut DIN 16283 – Technical illustration: spannm

connection	L	SW	*material ^1)**	DIN-no.	order number
G 1/4	23	17	Steel	DIN16283-1-10St	162831GI14GI14I
			SS	DIN16283-1-20St	162832GI14GI14I
			brass	DIN16283-1-10Ms	162836GI14GI14I
G 1/2	36	27	Steel	DIN16283-3-10St	162831GI12GI12I
			SS	DIN16283-3-20St	162832GI12GI12I
			brass	DIN16283-3-10SMs	162836GI12GI12I

other dimensions on request

Fitting DIN 16281 for supports for measuring instruments or gauge valves

Fitting DIN 16281 for supports for measuring instruments or gauge valves – Technical illustration: zwischens

connection d		*material ^1)**	DIN-no.	order number
E	A
G 1/2	G 1/2	steel	DIN16281-10St	162811GM12GI12m
		SS	DIN16281-20St	162812GM12GI12m
		brass	DIN16281-10Ms	162816GM12GI12m

figure 1: materials

material	short sign	T max °C	PN max
steel Rp>=0,2³ 220 N/mm²	10 St	120	400
SS acc. to DIN 17440 Rp>=0,2³ 190 N/mm²	20 St	120	400
brass acc. to DIN 17672-1 oder DIN 17673-1 Rp>=0,2³ 150 N/mm²	10 Ms	120	250

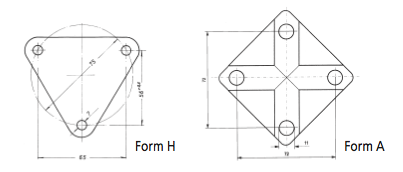

support DIN 16281 - form A and H for measuring instruments and gauge valves

support DIN 16281 - form A and H for measuring instruments and gauge valves – Technical illustration: halterdin

material	length L	form	DIN-no.	order number
aluminium black painted	60	H	DIN16281-H-60	16281HALTERAL60
	100	H	DIN16281-H-100	16281HALTERAL100
	160	H	DIN16281-H-160	16281HALTERAL160
SS	60	H	DIN16281-H-60	16281HALTERVA60
	100	H	DIN16281-H-100	16281HALTERVA100
	160	H	DIN16281-H-160	16281HALTERVA160
GG	100	A	DIN16281-H	16281HALTERGG100

For mounting at 2“ pipe; 2“ fixingbolts
