Angle valve

body number 5

DN: max 6
PN max. 400
T max 250°C
CV ≈ 0,65 (DN5)



Compact forged valve in angle form, with screwed seat and internal spindle thread for temperatures in the short-term of up to 300°C.

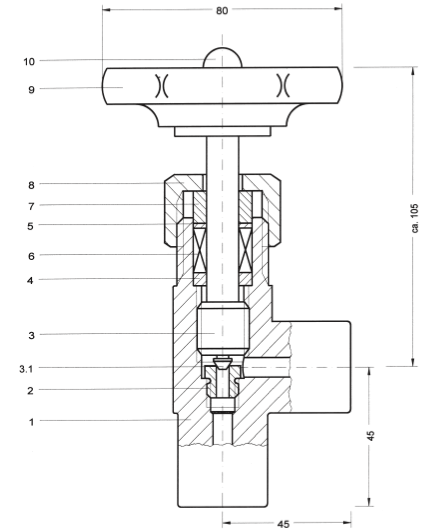

part list

part no. designation material
1 2 3
1 body, forged A105 316Ti A182-F11;F12
2 seat interchangeable 430F 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 taper ring 1035 316Ti 1213
5 scraper ring Novapress
6 packing graphite1) PTFE2) graphite1)
7 gland 1213 316Ti 1213
8 union nut 1213 316Ti
1213
9 handwheel moulded plastic3)
10 nut galvanized steel SS galvanized steel

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250
3) On request: steel sheet or tommy bar.

scale

All valves and manifolds are 100% pressure tested after assembly. Your guarantee for problemfree use.

Dichtigkeit.








  • interchangeable stainless steel seat
  • acc. to german TA-Luft possible


Order Number

E 5
  inlet-code outlet-code
type body number material code special characters code
E=angle valve   1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
3 Mat.: heat resistant steel A182-F11;F12


E venting
G bar (instead of handwheel)
H  handwheel of steel sheet
K lock nut
L bracket
PT german TA-Luft
R adjusting cone (needle, parabola cone)
