Manifold 75

75

DN: max 5 Ausblasventil DN8

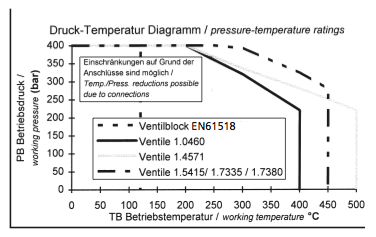

PN max. 420 (6000psi)
T max 250°C

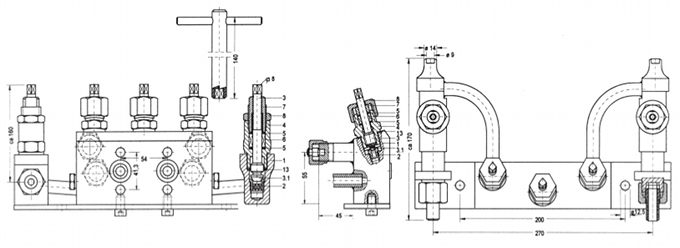

To this 5 valve manifold a transmitter will be directly flanged. The manifold has two block valves (+ and - lines), 2 blow out valves, 2 test connections and an equaliser valve.
For use in power plants.

parts list for manifold

part no. designation material
1 2 3
1 body A105 316Ti A182-F11;F12
2 seat interchangeable 430F 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti
5 scraper ring Novapress
6 packing graphite1)
7 gland 1213 316Ti
8 union nut 1213 316Ti 303
13 seal mild steel 316Ti mild steel

1) On request: ptfe

parts list for blow out shut-off valves

part no. designation material
1 2 3 5 7
1 body, forged A105 316Ti A182-F11;F12 A182-F1 A182-F22
2 seat interchangeable 430F 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti
5 scraper ring Novapress
6 packing graphite  1)
7 gland 1015
316Ti
8 union nut 1035
303
13 seal mild steel 316Ti mild steel

1) On request: ptfe

7/16 UNFx2" oder

M 10x50 oder M 12x50

nach DIN 931

seals

PN 1-100:PTFE

PN101-400: Viton®

4 screws 7/16“ UNF x2“ steel

zinc-coated and 2 gaskets

belong to the manifold

Order Number

V 75
  FL

type body number manifold mat. code valve mat. code outlet-code instrument outlet-code test connection code special characters code
V=manifold   1 Mat.: carbon steel A105

2
 Mat.: stainless steel 316Ti

3
 Mat.: heat resistant steel A182-F 11; F 12

5
Wst. Mat.: heat resistant steel A182-F 1

7
Wst. Mat.: heat resistant steel A182-F 22

All materials can be delivered with certificate DIN EN 10204 - 3.1/3.2
**

**



** s. also Körpers A3.
