Manifold 58

58 DN: max 5 (8)

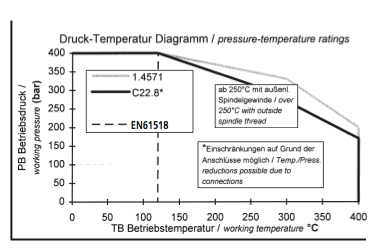

PN max. 420 (6000psi)
T max 250°C

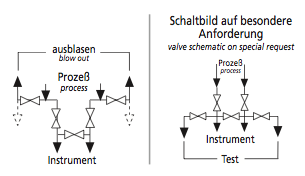

This manifold is only for zero-point / equalization of an differential pressure gauge. The connections and the connection-measures can be adjusted to the differential pressure gauge.

parts list

part no. designation material
1 2
1 body A105 316Ti
2 seat interchangeable 430F 316Ti
3 Sspindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti
5 scraper ring Novapress
6 packing graphit1) PTFE2)
7 gland 1213 316Ti
8 union nut 1213 316Ti
13 seal mild steel 316Ti

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250

Diese Darstellung zeigt beispiels- weise den Ventilblock mit Ein- gangs-, Ausgangs- und Testan- schluß mit Innengewinde
1/2” NPT. Optional sind Laschen, Befesti- gungsgewinde und die Verschluß- schraube. (Andere Anschlüsse und Erklärun- gen s. Seite V25)

scale

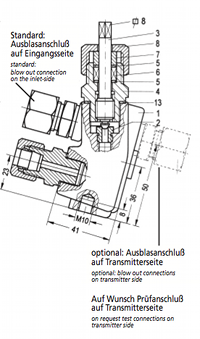

This picture shows e.g. the manifold with inlet-, and blow out connec- tion cutting-ring for 12mm tube. The outlet is flangeable EN 61518.





Order no. for this example:

V58?SV12FLSV12



7/16 UNFx2" oder

M 10x50 oder M 12x50

nach DIN 931

seals

PN 1-100:PTFE

PN101-400: Viton®

4 screws 7/16“ UNF x2 1/4“ steel

zinc-coated and 2 gaskets

belong to the manifold

Order Number

V 58
  FL h
type body number material code inlet-code outlet-code test-/ blow out connection code special characters code
V=manifold   1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti



h if proofconnections are on transmitter side
P6 G3/8“ possibly with plug
P7 1/2-14 NPT possibly with plug
P8 1/4-18 NPT possibly with plug
P1 screwed stud with M20x1,5 male. cap DIN 16287 form D
Q6 G3/8“ possibly with plug
Q7 1/2-14 NPT possibly with plug
Q8 1/4-18 NPT possibly with plug

A external spindle thread
F bellow
PT german TA-Luft
