Manifold 33

33 DN: max 5 (8)
PN max. 420 (6000psi)
T max 250°C
(T max 450oC with external spindle thread)
This 3 valve manifold is designed for remote mounting to a transmitter. It has two blockvalves (+ and - lines) and an equaliser valve. The manifold could have optional proof- and / or blow out connections.

parts list

part no. designation material
1 2 3
1 body A105 316Ti A182-F11;F12
2 seat interchangeable 430F 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti
5 scraper ring Novapress
6 packing graphite1) PTFE2)
7 gland 1213 316Ti 316Ti
8 union nut 1213 316Ti 303
9 handwheel moulded plastic3)
10 nut galvanized steel SS
13 seal mild steel 316Ti mild steel

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250
3) On request: steel sheet or tommy bar.

Diese Darstellung zeigt beispiels- weise den Ventilblock mit Ein- gangs-, Ausgangs- und Testan- schluß mit Innengewinde
1/2” NPT. Optional sind Laschen, Befesti- gungsgewinde und die Verschluß- schraube. (Andere Anschlüsse und Erklärun- gen s. Seite V25)

scale

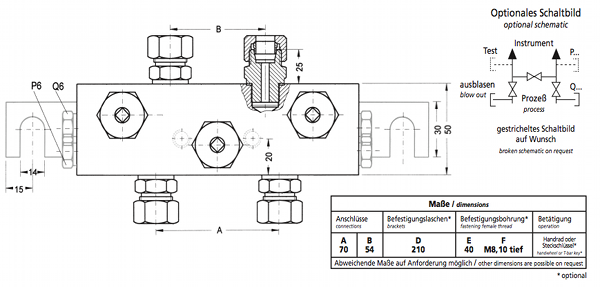

This picture shows e.g. the manifold with inlet and outlet cutting ring connections for 12mm tube. Optional there are brackets, fastening f-thread or test-connections.







Order Number

V 33



type body number material code inlet-code outlet-code test-/ blow out connection code special characters code
V=manifold   1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
3 Mat.: heat resistant steel A182-F 11; F 12
    P6 G3/8“ with plug
P7 1/2-14 NPT with plug
P8 1/4-18 NPT with plug
P1 welded stud with M20x1,5 male. cap DIN 16287 form C
Q5 G1/4“ with plug
Q6 G3/8“ with plug
Q7 1/2-14 NPT with plug
Q8 1/4-18 NPT with plug
A external spindle thread
B fastening female thread
F bellow
G bar (instead of handwheel)
H handwheel of steel sheet
L bracket
PT german TA-Luft
S T-bar key
