Manifold 31

31 DN: max 5 (8)
PN max. 420 (6000psi)

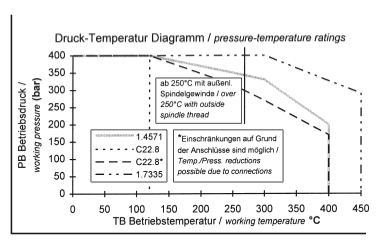

T max 250°C
(T max 450oC with external spindle thread)
This 3-walve manifold has an isolation-, an instrument- and a vent/calibrate valve.

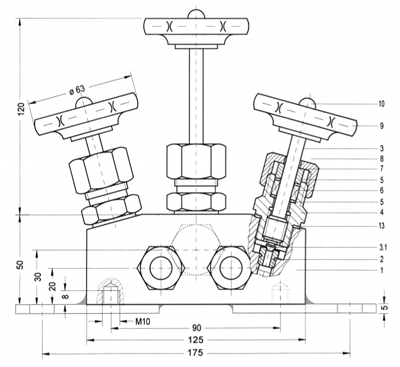

parts list

part no. designation material
1 2 3
1 body A105 316Ti A182-F11;F12
2 seat interchangeable 430F 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti
5 scraper ring Novapress
6 packing graphite1) PTFE2)
7 gland 1213 316Ti 316Ti
8 union nut 1213 316Ti 303
9 handwheel moulded plastic3)
10 nut galvanized steel SS
13 seal mild steel 316Ti mild steel

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250
3) On request: steel sheet or tommy bar.

Diese Darstellung zeigt beispiels- weise den Ventilblock mit Ein- gangs-, Ausgangs- und Testan- schluß mit Innengewinde
1/2” NPT. Optional sind Laschen, Befesti- gungsgewinde und die Verschluß- schraube. (Andere Anschlüsse und Erklärun- gen s. Seite V25)

scale

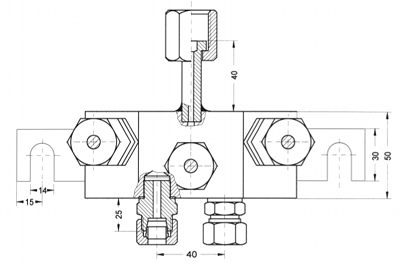

This picture shows e.g. the manifold with inlet- and test-connection cutting ring for 12mm tube and and outlet connection wel- ded nipple with union nut G1/2” EN 837-1. Optional there are brackets or fastening f-thread.





Order no. for this example:

V31?SV12LG12SV12









Fastening female thread or brackets on request







Order Number

V 31



type body number material code inlet-code outlet-code test-/ blow out connection code special characters code
V=manifold   1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
3 Mat.: heat resistant steel A182-F11; F12

  P6 G3/8“ possibly with plug
P7 1/2-14 NPT possibly with plug
P8 1/4-18 NPT possibly with plug
P1 screwed stud with M20x1,5 male. Cap DIN 16287 form D
A external spindle thread
B fastening female thread
F bellow
G bar (instead of handwheel)
H handwheel of steel sheet
L bracket
PT german TA-Luft
S T-bar key
