Manifold 22

22 DN: max 5 (8)

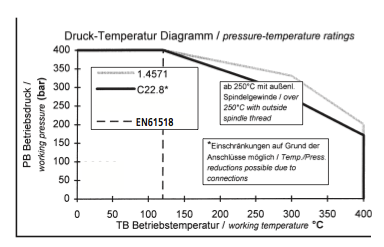

PN max. 420 (6000psi)
T max 250°C
This 2 valve manifold is for direct mounting to a pressure transmitter. The inlet and test /calibrate connections are separately shut off. Additionally this manifold has test and / or blow-out connection.
    s. also Barstockblock Körpernummer 27/28.

parts list

part no. designation material
1 2
1 body A105 316Ti
2 seat interchangeable 430F 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti
5 scraper ring Novapress
6 packing graphite1) PTFE2)
7 gland 1213 316Ti
8 union nut 1213 316Ti
9 handwheel moulded plastic3)
10 nut galvanized steel SS
13 seal mild steel 316Ti

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250
3) On request: steel sheet or tommy bar.

Diese Darstellung zeigt beispiels- weise den Ventilblock mit Ein- gangs-, Ausgangs- und Testan- schluß mit Innengewinde
1/2” NPT. Optional sind Laschen, Befesti- gungsgewinde und die Verschluß- schraube. (Andere Anschlüsse und Erklärun- gen s. Seite V25)

scale

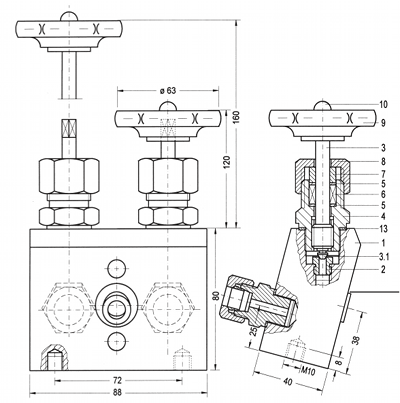

This picture shows e.g. the manifold with inlet and test-connection cutting-ring for 12mm tube. The outlet ist flangeable EN 61518. Optional there are fastening female thread and T-bar key.

[

7/16 UNFx2" oder

M 10x50 oder M 12x50

nach DIN 931

seals

PN 1-100:PTFE

PN101-400: Viton®

4 screws 7/16“ UNF x2“ steel

zinc-coated and 2 gaskets

belong to the manifold

Order Number

V 22
  FL

type body number material code inlet-code outlet-code test connection code special characters code
V=manifold   1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
    P6 G3/8“ possibly with plug
P7 1/2-14 NPT possibly with plug
P8 1/4-18 NPT possibly with plug
P1 screwed stud with M20x1,5 male. Cap DIN 16287 form D
A external spindle thread
B fastening female thread
F bellow
G bar (instead of handwheel)
H handwheel of steel sheet
PT german TA-Luft
S T-bar key
