Manifold 10

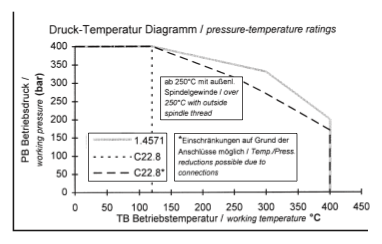

10 DN: max 5 (8)
PN max. 420 (6000psi)
T max 250°C
This manifold is only for zero-point / equalization of an differential pressure gauge. The connections and the connection-measures can be adjusted to the differential pressure gauge.

parts list

part no. designation material
1 2
1 body A105 316Ti
3 spindle roll sealed 430F 316Ti
3.1 cone, rolled into, movable SS 316Ti
4 screwed bonnet housing 1035 316Ti
5 scraper ring Novapress
6 packing graphite1) PTFE2)
7 gland 1213 316Ti
8 union nut 1213 316Ti
9 handwheel moulded plastic3)
10 nut galvanized steel SS
13 seal mild steel 316Ti

1) On request: ptfe-packing; max 200°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250
3) On request: steel sheet or tommy bar.

scale

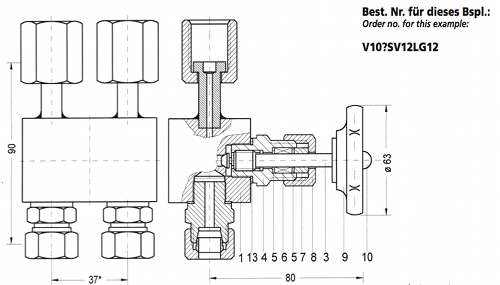

This picture shows e.g. the manifold with inlet cutting ring connections for 12mm tube and and outlet connection welded nipple with union nut G1/2” DIN 16284.



* other dimensions are possible

Order Number

V 10

type body number material code inlet-code outlet-code special characters code
V=manifold   1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
    A external spindle thread
B fastening female thread
F bellow
G bar (instead of handwheel)
H  handwheel of steel sheet
L bracket
PT german TA-Luft
S T-bar key
