Gauge cocks - Option 2

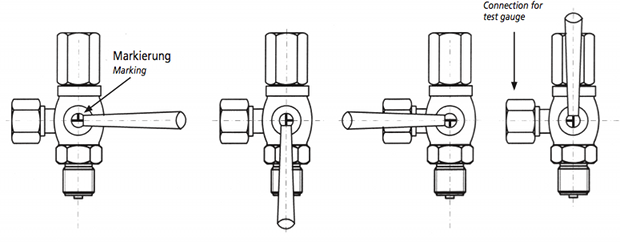

Position of the bar

Expansion of the outlet

Outlet unpressurized / inlet closed

Use

inlet to outlet open

Blow out

outlet closed / inlet open

Test

inlet to outlet open
test connection open

DIN 16263

male thread x adjusting nut and test connection

temperature max. 50°C



connection D PN L B SW G Material order number
G 1/2" 16 90 48 27 60 brass Hahn6GM12SP12P1
G 1/2" 16 90 48 27 60 316Ti Hahn2GM12SP12P1

--> More different cocks on request

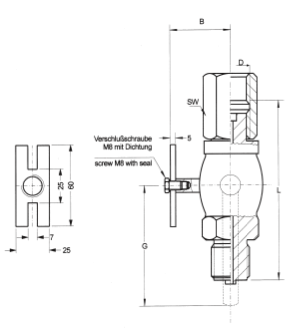

Test connection: test flange 60 x 25

Test connection: test flange 60 x 25


connection D PN L B SW G Material order number
G 1/2" 16 90 48 27 60 brass Hahn6GM12SP12P3
G 1/2" 16 90 48 27 60 316Ti Hahn2GM12SP12P3

--> More different cocks on request

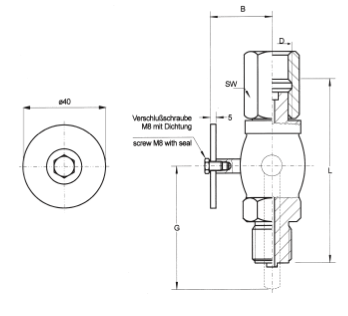

Test connection: round flange 40mm Dia

Test connection: round flange 40mm Dia

connection D PN L B SW G Material order number
G1/2“ 16 90 48 27 60 brass Hahn6GM12SP12P4
G1/2“ 16 90 48 27 60 316Ti Hahn2GM12SP12P4

--> More different cocks on request
