Gauge cocks - Option 1

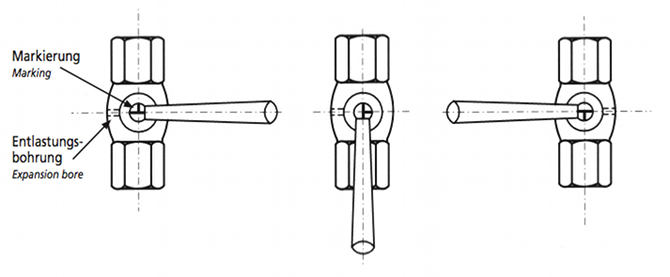

Position of the bar

Entlüften
Druckmessgerät drucklos (Nullstellung) Zuleitung geschlossen

Expansion of the outlet



Outlet unpressurized / inlet closed



Use



inlet to outlet open



Blow out



outlet closed / inlet open



DIN 16261 A

Ifemale x female threads ; temperature max. 50°C



connection D PN L H SW G Material order number
G 1/4" 6 55 55 22 36 brass Hahn6GI14GI14
G 3/8" 6 60 55 22 36 brass Hahn6GI38GI38
G 1/2" 16 70 60 27 50 brass Hahn6GI12GI12
G 1/4" 6 50 60 20 36 316Ti Hahn2GI14GI14
G 3/8" 6 55 60 22 36 316Ti Hahn2GI38GI38
G 1/2" 16 70 65 27 50 316Ti Hahn2GI12GI12

--> More different cocks on request

DIN 16261 B

male x female threads ; temperature max. 50°C



connection D PN L H SW G Material order number
G 1/4" 6 60 55 22 36 brass Hahn6GM14GI14
G 3/8" 6 65 55 22 36 brass Hahn6GM38GI38
G 1/2" 16 80 65 27 50 brass Hahn6GM12GI12
G 1/4" 6 60 55 22 36 316Ti Hahn2GM14GI14
G 3/8" 6 65 55 22 36 316Ti Hahn2GM38GI38
G 1/2" 16 80 65 27 50 316Ti Hahn2GM12GI12

--> More different cocks on request

DIN 16262

male thread x adjusting nut; temperature max. 50°C


connection D PN DIN L H SW G Material order number
G1/4“ 6 16262B 50 45 17 36 brass Hahn6GM14SP14
G1/2“ 16 16262A 80 65 27 60 brass Hahn6GM12SP12
G1/4“ 6 16262B 60 55 17 36 316Ti Hahn2GM14SP14
G1/2“ 16 16262A 80 65 27 60 316Ti Hahn2GM12SP12

--> More different cocks on request
