Manifolds

37

DN: max 5

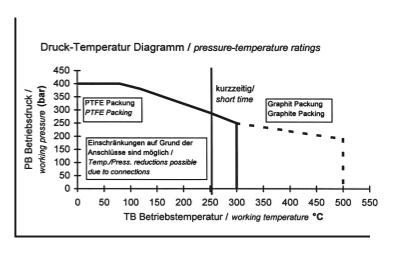

PN max. 420 (6000psi)
T max 250°C

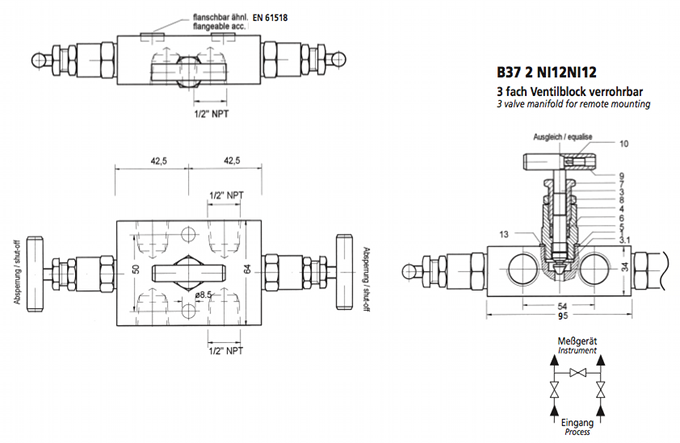

This 3 valve manifold is designed for remote / direct mounting to a transmitter. It has two block valves (+ and - lines) and an equaliser valve.

parts list

part no. designation material
2
1 body 316L
3 spindle 316Ti
3.1 non rotating plug 316Ti
4 bonnet 316Ti
5 scraper ring Novapress
6 packing PTFE 200°C
1)2)
7 gland 316Ti
8 lock-nut 316Ti
9 T-bar 316Ti
10 screw SS
13 seal 316Ti

1) On request: graphite; max 550°C for all fittings or
2) free of oil and grease: oxygen packing max. PN 250

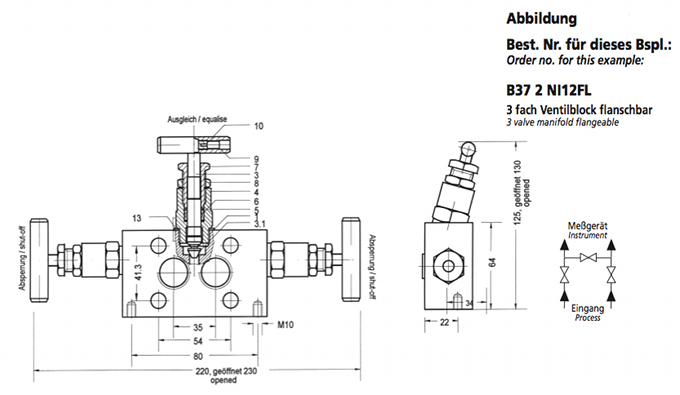

Order Number

B 37 2 Nl12 FL
B 37 2 Nl12 Nl12
type body number material code inlet-code outlet-code special characters code


2 Mat.: stainless steel 316L


other materials on request

All materials can be delivered with certificate DIN EN 10204 - 3.1

different connections from standard are possible
F  bellow
E  venting
PT german TA-Luft
