Pipes, Syphons

pipes - angle form

connection material*2) order number.
E (inlet) A (outlet)
G1/2“ right hand thread for adjusting nut with zentring
G1/2“ left hand thread with adjusting nut P235GH-TC1; A106A WINKEL1GM12SP12
1.4571; 316Ti WINKEL2GM12SP12
1.7335; F12 WINKEL3GM12SP12
but weld end 20 x 2,6 G1/2“ left hand thread with adjusting nut P235GH-TC1; A106A WINKEL1SZ20SP12
1.4571; 316Ti WINKEL2SZ20SP12
1.7335; F12 WINKEL3SZ20SP12

pipes - straight form

connetions material *2) order number
E (inlet) A (outlet)
G1/2“ right hand thread for adjusting nut with zentring
G1/2“ left hand thread with adjusting nut P235GH-TC1; A106A ROHR1GM12SP12
1.4571; 316Ti ROHR2GM12SP12
1.7335; F12 ROHR3GM12SP12
but weld end 20 x 2,6 G1/2“ left hand thread with adjusting nut P235GH-TC1; A106A ROHR1SZ20SP12
1.4571; 316Ti ROHR2SZ20SP12
1.7335; F12 ROHR3SZ20SP12

Syphon

connection material *2) order number
E (inlet) A (outlet)
G1/2“m with gauge spigot G1/2“ left hand thread with adjusting nut left-right thread P235GH-TC1; A106A SYPH1GM12SP12
1.4571; 316Ti SYPH2GM12SP12

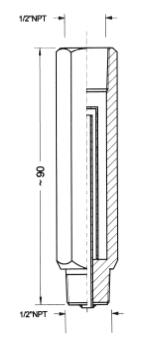

1/2-14 NPT male 1/2-14 NPT female P235GH-TC1; A106A SYPH1NA12NI12
1.4571; 316Ti SYPH2NA12NI12

*2) materials, temperature and pressure range for pipes

material max. working pressure
bar
max. working temperature
°C
10 St steel P235GH
 DIN EN 10216-2
100 120
80 300
63 400
20 St SS, DIN 17456
Rp0,2 190 N/mm²
100 120
80 300
63 400
with material certificate DIN-EN 10204 - 3.1 deliverable
